ELP can automatically store data streams into any archive folder. This tab can be used to search the folders, preview and/or reprint or e-mail the documents.



Two items are of interest in this tab:

1. The software can be installed (actually copied) to a network drive, so that everybody has access to it. Done in the proper way, the Control Center will only list this tab and all the others are not shown. So nobody can manipulate the actual ELP installation. If the variable #USERNAME# is used in the path description, it is replaced by the actual user name and so it is assured, that no other user can have a look into print jobs from others.
The full documentation is here: Configure PPAdmin's archive reprint tool on a normal user PC or on a Network drive .

2. You can point to any other directory as well, e.g. for production the special directory for manuals, warranty etc. data streams, and those are printed on demand. For that purpose, add a new section to the convert.ini file and add as many OutArchiveDir keys as directories needed. The rule will never be executed, but the PPAdmin´s Archive function will find it.

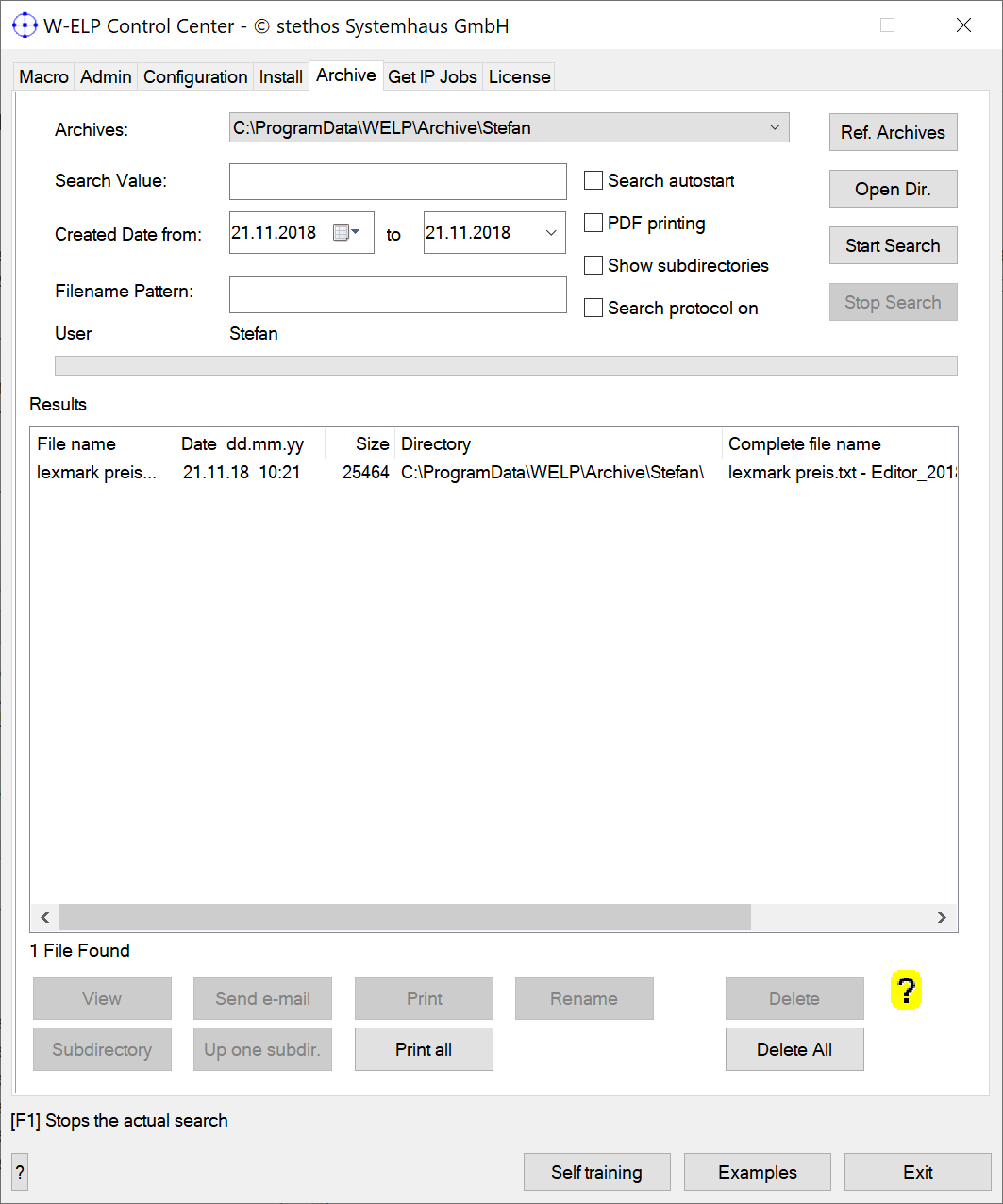

The possibilities of this tab are:



Archive If ELP serves several archives, the drop-down list displays them all for selection.
Ref. Archives Refreshes the drop-down list. Reads all In/OutArchiveDir keys from the startup ini (convert.ini) file and writes them for selection into the archive drop-down list.
Open Dir. Windows Explorer is started with the start folder of the selected archive.
Start Search As in the background the ELP process might have written more files into the directory structure, this button reloads all existing files to the result table.
Search autostart If the check box is enabled, ELP automatically displays the content of the first archive when the register is opened the first time.
Search Value*

Any search expression can be entered. You can insert several words separated by a blank or you can type an expression in quotation marks to search for a complete expression. e.g.: Mister "Mister Rost". No entry will display all files of the directory. The content of the files is searched using the WINDOWS method!

Created Date from* The field limits the search for archived files created within this period.
To* The field limits the search for archived files created within this period.

* No entry in the search field displays all files of the selected archive.

PDF printing If marked, the printer can directly print PDF documents, otherwise on any selected PDF files; the print button will be not accessible.
Results

Lists all found files. For the following actions you may mark then using the shift and ctrl keys and then right click or on one of the selectable buttons any found results can be sorted by clicking on each column header like file name etc. in order to sort the list.

View Archive File*

PDF files are directly shown. For any other files, ELP Control Center tries to convert it to PDF, using the PCL2PDF converter. If within 10 seconds the conversion is not done, maybe because of an extreme large print file, or a slow PC, a notification window will pop up. Now you have the possibility to wait for another 10 seconds or abort the process.
The wait time for PDF conversion can be set according your needs in 0.5 seconds steps using the registry key PDFConvWaitTime at HKEY_LOCAL_MACHINE\Software\[Wow6432Node]\welp\welpprint.

Send E-Mail*

The e-mail feature needs to be configured via the Admin tab before this function is usable.

After a single file is selected and the Send e-mail button pressed, this window pops up:

There you can fill in the e-mail address, separated by comma, the subject and even edit the default body text (for line breaks use CTRL+ENTER).

In the properties you can select whether the archived file is inserted binary or as a PDF file.
The option PDF is only available if the PDF module is installed or the archived file exists in the PDF format.

By clicking "OK" the e-mail will be sent and the body text is stored in the archive directory as a text file. Next time sending the same archive the stored text file is displayed as the default text for the e-mail body.

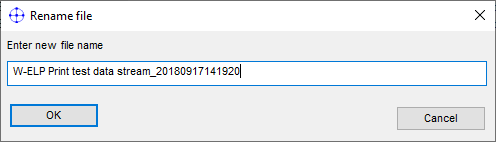

Rename

If you do not like the default archive file name then you have three possibilities to change the name:

A) Mark the file and use the rename button to change the file name

B) Use the file explorer to move the file and/or change the name

C) Ask your administrator if ELP can automatically use generated file names out of the print job.

Delete / all Deletes the marked print files / pdf files
Print / all

Several archived files can be selected for reprinting by holding down in the archive result window the Shift or Control key and the files are selected with the mouse or with the cursor keys. This button opens the printing window. Even while this window is open, more files can be selected and moved over for printing.
It is also recommended to move the main PPAdmin window to the left of the screen, so you can add later easily add new archived files to the printing list.

Show subdirectories If this item is selected and if the current directory contains subdirectories, you can navigate with the buttons below.
Subdirectory Changes into the selected subdirectory
Up one subdir Changes to the parent directory

* Only one file can be selected

On the drop-down field archives, you can choose one of your installed archive folder to search in.

Important:

  • If you have more than one .ini file for PPADMIN, only the In- and OutArchive directory from the standard convert.ini are shown.
  • For displaying the archived directory from other files, please add for each file an empty section to the convert.ini, and insert in this section the In-/OutArchivedir Key with the path from the other files.
  • In the search value field, you must insert your value to search for. You can type in several search words separated by a blank.
  • You can also type several words in quotation marks to search for a complete expression.
  • With the date fields, you can limit the creation date of the searched archive file.
  • The View, Print, and Send e-mail buttons are only available if a searched result is selected and if the appropriate module is installed.
  • For sending archived files attached to an e-mail you need to enable the e-mail module.
  • For viewing archived files without watermark, you have to enable PDF module.
  • Printing the archived files is within the standard module.



Related articles: Archiving, Running convert.exe process in user context, Archiving to professional storage system using Index files, Example: MyPrintArchive - Collect4Printing
